 W27Y series of Hydraulic pipe-bending machines
 All Products Photo
|

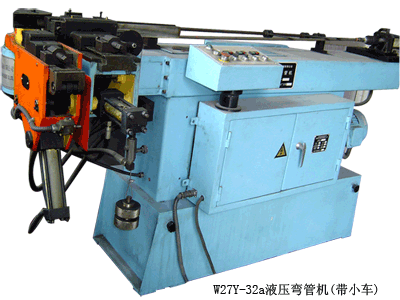

For the models of W27Y and W27YPC series computer-controlled hydraulic pipe-bending machines, there are bending dies, clamp block,mandrel baII, booster and wiper assemnled with and also the function of automatic cycle. The electromnics are collective controlled. The bending angled are controlled by the Angle-controller. They are economical and applied machines.
|
No |
Descripiton |
Uint |
-32 |
-42 |
-63 |
-89 |
-114 |
Remark |
1 |
Max.Technique Torque |
Mpg |
|
245 |
|
|
|
|
2 |
Max.O.D |
mm |
32*3 |
42*3 |
63*5 |
89*6 |
114*8 |
O.D*Thk. |
3 |
Max.Bending Radius |
mm |
120 |
200 |
250 |
450 |
450 |
(2D) |
4 |
Min.Bending Radius |
mm |
15 |
20 |
30 |
50 |
80 |
Upon o.d |
5 |
Min.Bending Radius of Max.Tube Caliber |
mm |
60 |
80 |
120 |
160 |
220 |
|
6 |
Max.Bending Angle |
Deg |
185 |
185 |
185 |
185 |
187 |
|
7 |
Bending Speed |
r/min |
0-8 |
0-6 |
0-3.5 |
0-1.5 |
0-1.5 |
Adjustable |
8 |
Length of the Standard Mandrel |
mm |
1500 |
2000 |
2500 |
3000 |
3000 |
Changeable |
9 |
Power |
KW |
4 |
4 |
7.5 |
15 |
15 |
|
10 |
Hydraulic Work Pressure |
Mpa |
≤5 |
≤12 |
≤14 |
≤14 |
≤14 |
|
11 |
Angle-Control of Bend Arm |
Electromagnetic Reversal Valve |
台湾油顺 |
12 |
Controller |
PLC |
日本三菱 |
13 |
Angles Preset |
Position Switch |
2-4 Notches |
14 |
Measurement |
m |
2*0.9*1 |
2.5*1.1*1.2 |
3.2*1.3*1.5 |
5.3*1.6*1.6 |
5.3*1.6*1.6 |
L*W*H |
15 |
Weight |
Kg |
1000 |
1200 |
2500 |
4000 |
4500 |
|
|
Leave Word | CD Download | 中文
